Yamaha Outboards

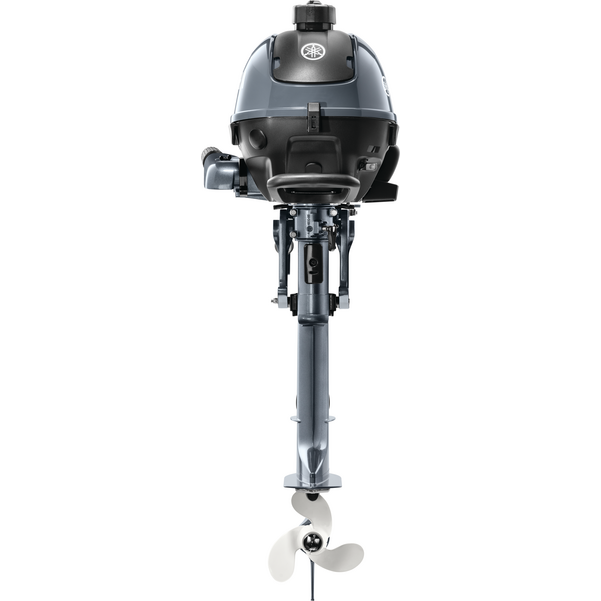

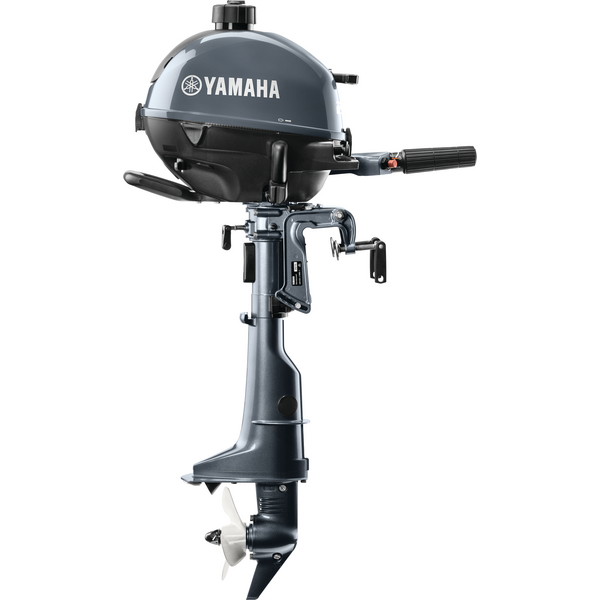

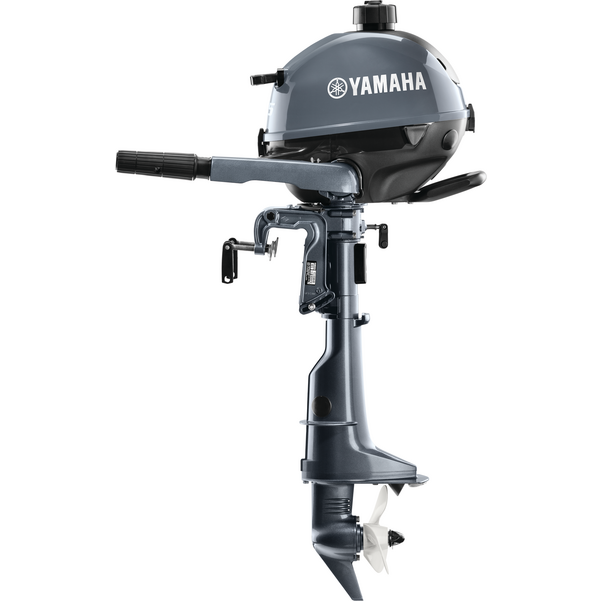

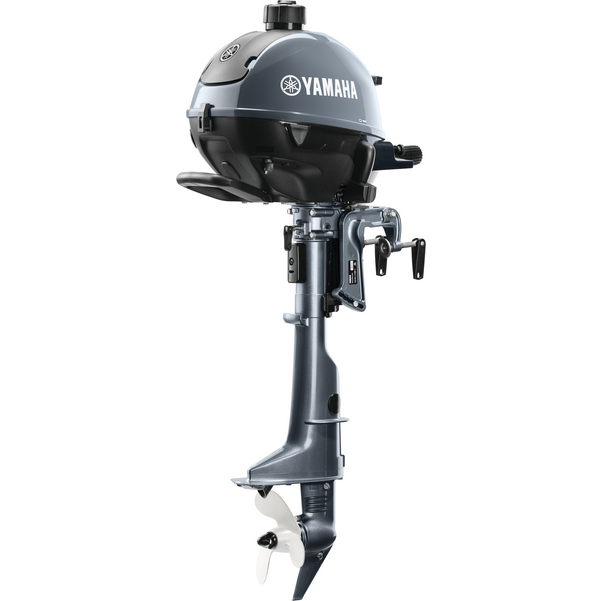

Yamaha 2.5 HP F2.5LMHB Outboard | 20″ Shaft | Manual Start | Manual Tilt
SKU F2.5LMHB
$1,265.00
In stock
The Yamaha F2.5LMHB outboard motor is a pinnacle of engineering excellence, designed to offer unmatched performance, reliability, and convenience for boaters. Perfectly suited for small boats, tenders, and inflatables, this compact 2.5 horsepower engine is built to provide a smooth and efficient boating experience. Key Features: Compact and Lightweight Design: Weighing just 40 lbs, the Yamaha F2.5LMHB is easy to transport and store. Its compact size makes it ideal for a variety of small watercraft, ensuring easy handling and installation. Effortless Starting: Equipped with Yamaha's exclusive start-in-gear protection, the F2.5LMHB ensures reliable and safe starting every time. The manual choke and automatic decompression make the start-up process quick and simple. Fuel Efficiency: Yamaha's advanced engineering delivers exceptional fuel efficiency, allowing you to spend more time on the water and less time refueling. The integrated fuel tank holds 0.9 liters (0.24 gallons) and provides ample run time for extended outings. Smooth and Quiet Operation: The single-cylinder, OHV engine design minimizes vibration and noise, providing a more enjoyable and comfortable boating experience. The water-cooled system ensures optimal performance and durability. 360-Degree Steering: With full 360-degree steering capability, the F2.5LMHB offers superior maneuverability and control. This feature is particularly beneficial for tight docking situations and navigating through crowded marinas. Durability and Corrosion Resistance: Built to withstand harsh marine environments, the F2.5LMHB features Yamaha's renowned anti-corrosion protection. The engine's exterior is treated with a special paint process that offers maximum resistance to the elements. Convenient Features: The F2.5LMHB is equipped with an easy-to-use tiller handle that provides comfortable and precise control. The forward-neutral shifting and adjustable throttle friction make operating the motor intuitive and user-friendly. Specifications: Model: Yamaha F2.5LMHB Four Stroke Outboard HP: 2.5 Shaft Length: 20" Long Shaft Steering: Tiller Handle Shift: Forward, Neutral Starter: Manual Tilt: Manual Weight: 40 lbs Engine Type: OHV, Single Cylinder Displacement: 72 cc Bore x Stroke: 54.0 x 31.5 mm Fuel Tank Capacity: 0.9 liters (0.24 gallons) The Yamaha F2.5LMHB outboard motor is the ultimate solution for boaters seeking a powerful, reliable, and easy-to-use engine. Whether you are navigating tranquil lakes or exploring co
| Horsepower | 2.5 HP |
|---|---|
| Shaft Length | 20" (Long) |
| Starter Type | Manual |
| Tilt & Trim | Manual |
| Manufacturer | Yamaha |
| Brand | Yamaha |
| F2.5LMHB | 40 lbs |
|---|---|
| 5250-5750 | Carb |
| Yamalube (See Owner’s Manual) | 1 |
| 72cc | 54 x 31.5 mm (2.13 x 1.24 inches) |
| 2.5 @ 5500RPM | N/A |
| 8.8:1 | 87 OCTANE |
| 2-Star | Above Propeller |
| 2 | TCI |
| CR6HSB | Manual |
| Splash | 0.35L |
| Thermostatic Control | 10% Max |
| 2.01:1 | Foward, Neutral |
| 20″ | 79° |
| -4° through +16° | N/A |
| Tiller | 360° from center, either direction |
| MODEL | F2.5LMHB |
|---|---|
| WEIGHT | 40 lbs |
| FULL THROTTLE RPM RANGE | 5250-5750 |
| FUEL SYSTEM | Carb |
| RECOMMENDED OIL | Yamalube (See Owner’s Manual) |
| CYLINDERS | 1 |
| DISPLACEMENT | 72cc |
| BORE & STROKE | 54 x 31.5 mm (2.13 x 1.24 inches) |
| PROP SHAFT HP | 2.5 @ 5500RPM |
| ALTERNATOR OUTPUT | N/A |
| COMPRESSION RATIO | 8.8:1 |
| RECOMMENDED FUEL | 87 OCTANE |
| C.A.R.B. RATING | 2-Star |
| EXHAUST | Above Propeller |
| INTAKE | 2 |
| IGNITION | TCI |
| SPARK PLUG | CR6HSB |
| STARTING SYSTEM | Manual |
| LUBRICATION | Splash |
| ENGINE OIL CAPACITY | 0.35L |
| COOLING | Thermostatic Control |
| ETHANOL BLEND LIMIT | 10% Max |
| GEAR RATIO | 2.01:1 |
| GEAR SHIFT | Foward, Neutral |
| SHAFT LENGTH | 20″ |
| DEGREE OF TILT | 79° |
| DEGREE OF TRIM | -4° through +16° |
| MOUNTING CENTERS | N/A |
| STEERING | Tiller |
| STEERING ANGLE (MAX) | 360° from center, either direction |
| WARRANTY | Limited 3 year recreational |
- Integral Fuel Tank
- Propeller
- Owner’s Manual
- Yamaha 3-Year Warranty
